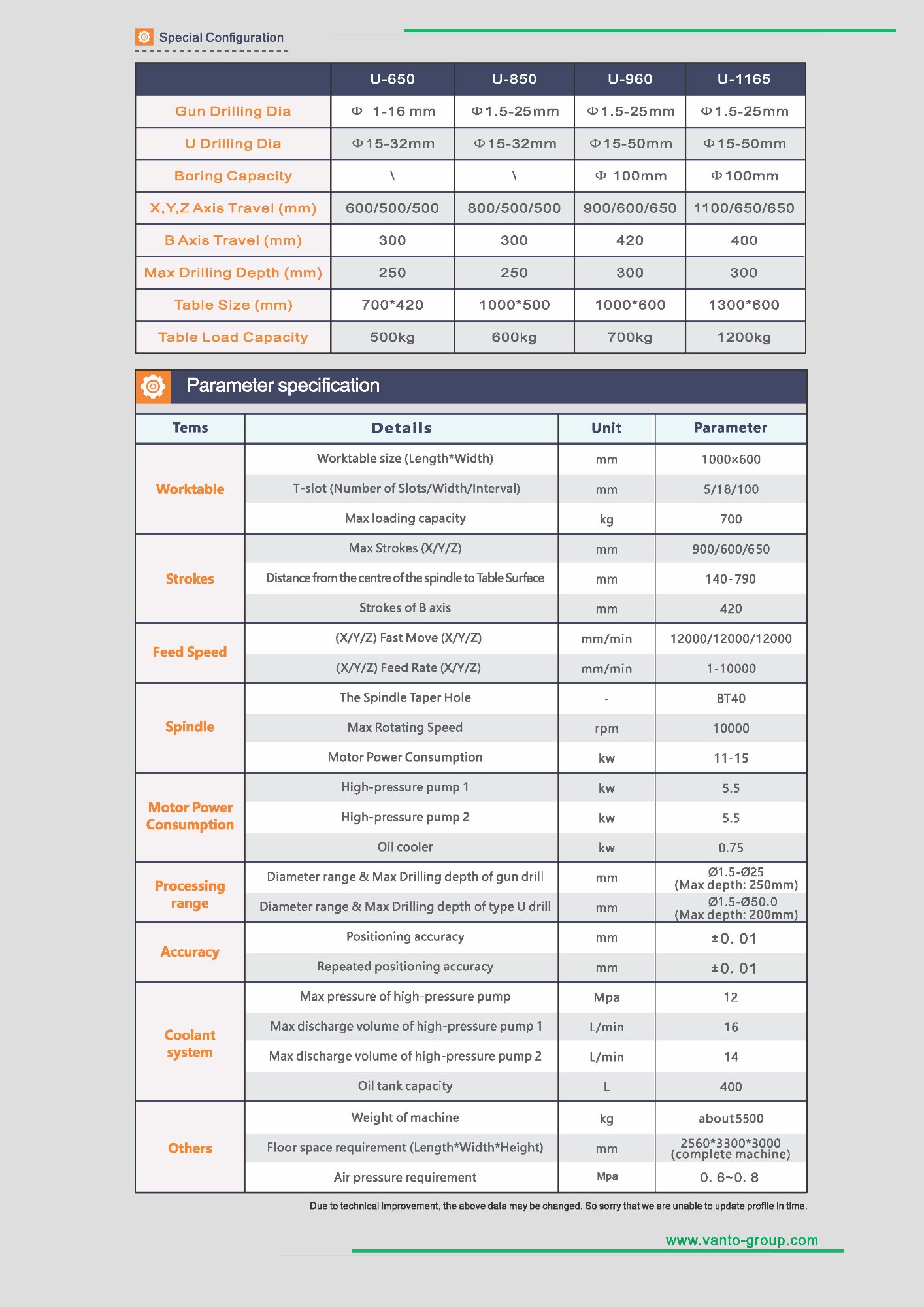

Worktable

Worktable size (Length*Width)

mm

1000×600

slot (Number of Slots/Width/Interval)

mm

5/18/100

Max loading capacity

kg

700

Strokes

（X/Y/Z) Max Strokes (X/Y/Z)

mm

900/600/900

Distance from the center of the

spindle to Table Surface

mm

140-1040

Strokes of B axis

mm

420

Feed Speed

（X/Y/Z) Fast Move (X/Y/Z)

mm/min

1-12000

（X/Y/Z) Feed Rate (X/Y/Z)

mm/min

1-10000

Spindle

The Spindle Taper Hole

BT40

Max Rotating Speed

rpm

10000

Motor Power Consumption

kw

11-15

Motor Power Consumption

High-pressure pump 1

kw

5.5

High-pressure pump 2

kw

5.5

Scavenging pump

kw

0.75

Processing range

Diameter range of gun drilling

mm

Ø1.5-Ø25.0

Diameter range of Type-U drilling

mm

Ø15.0-Ø50.0

Max Drilling Depth

mm

300

Accuracy

Positioning accuracy

mm

0.008

Repeated positioning accuracy

mm

0.008

Coolant system

Max pressure of high-pressure pump

Mpa

120

Max discharge volume

of high pressure pump 1

L/min

16

Max discharge volume

of high pressure pump 2

L/min

14

Oil tank capacity

L

400

Others

Weight of machine

kg

about 5500

Floor space requirement (Length*Width*Height)

mm

2560*3300*

3000

Air pressure requirement

Mpa

0.6～0.8
