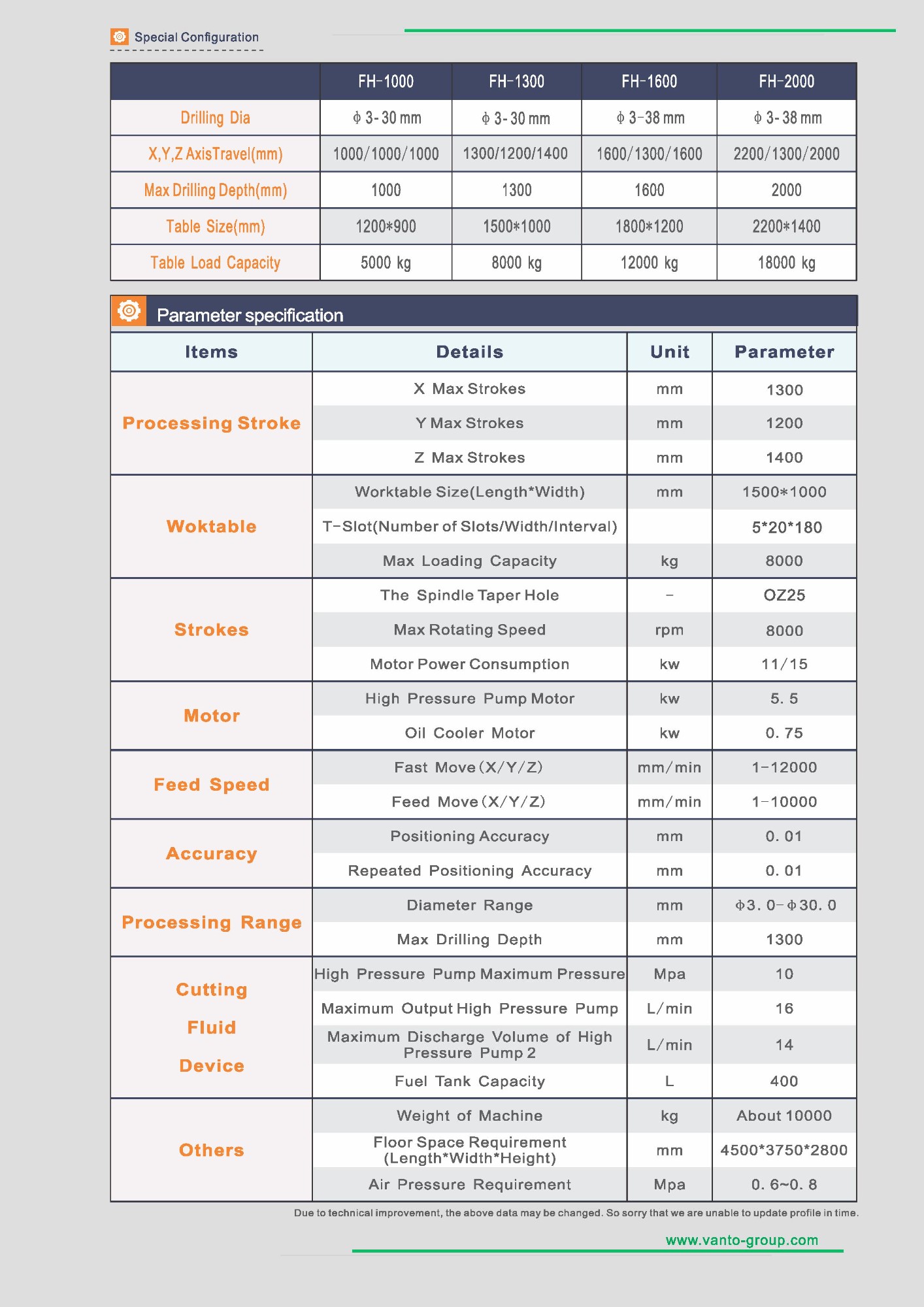

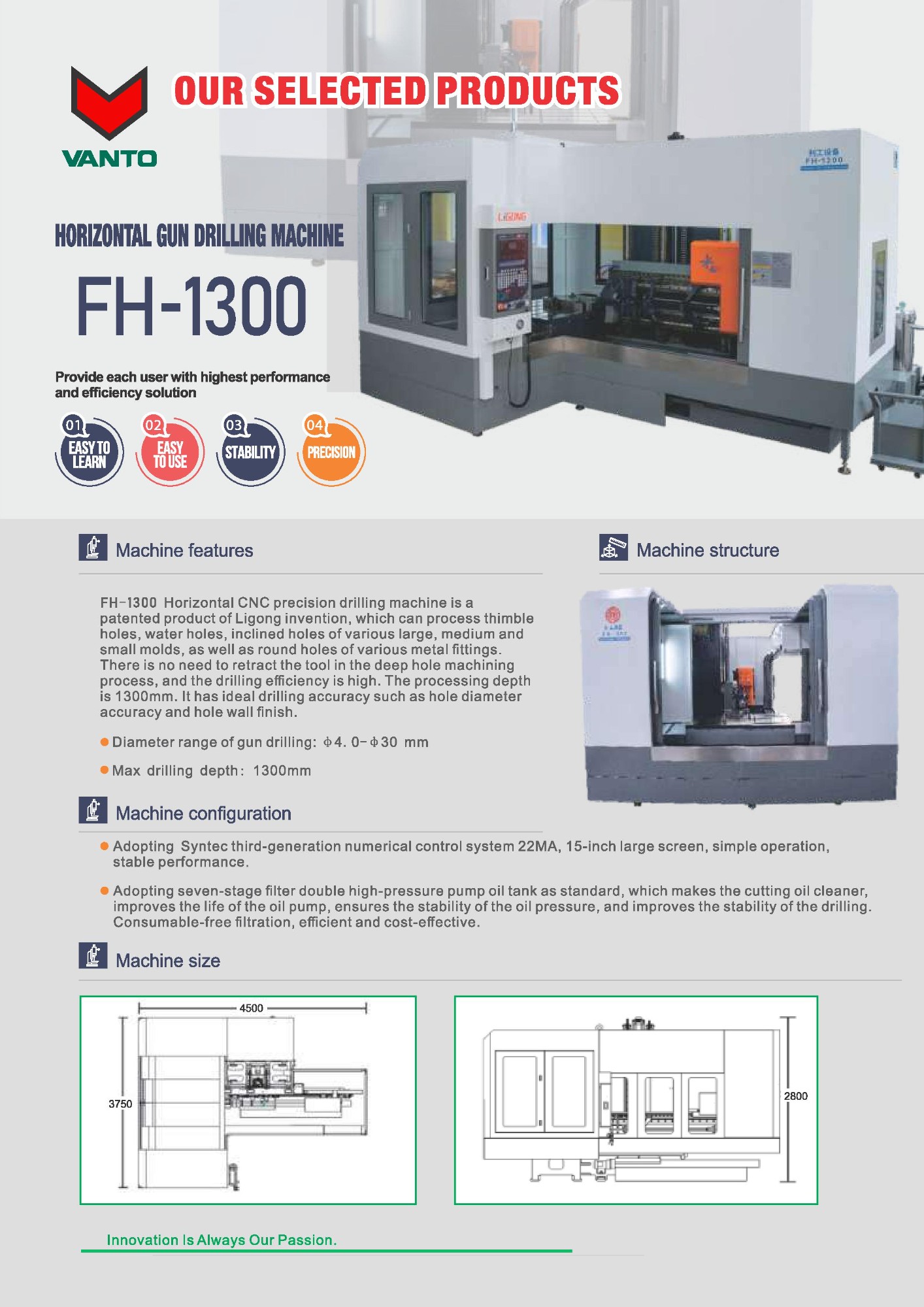

FH 1300-Horizontal Gun Drilling Machine

Worktable

Worktable size   (Length*Width)

mm

1500*1000

T-slot (Number of   Slots/Width/Interval)

5*20*180

 Max loading capacity

kg

8000

Processing Stroke

Maximum Stroke (X/Y/Z)

Mm

1300/1200/1400

Strokes

The specification of   horizontal spindle Taper Hole

mm

OZ-25

Max Rotation Speed

rpm

8000

Motor Power Consumption

kw

11/15

Distance from the center of   the horizontal spindle to Table Surface

mm

0- 450

Feed Speed

 Fast Move (X/Y/Z)

mm/min

1-12000

Feed Rate (X/Y/Z)

mm/min

1-10000

Motor

Motor Power Consumption

kw

5.5

Oil Cooler Motor

kw

0.75

Accuracy

Positioning accuracy

mm

0.01

Repeated positioning   accuracy

mm

0.01

Processing Range

Diameter range of horizontal   drilling

mm

φ4.0 - φ30.0

Max depth of drilling

mm

1300

Cutting Fluid Device

High pressure pump maximum   pressure

Mpa

10

Maximum output of high   pressure pump

L/min

16

Maximum discharge volume of   high pressure pump 2

L/min

14

Fuel tank capacity

L

400

Others

Weight of machine

kg

About   10000

Floor space requirement   (Length*Width*Height)

mm

4500*3750*2800

Air pressure requirement

Mpa

0.6～0.8
